Wallys/DR9074E-Qualcomm Atheros QCN9074(QCN9024)/ 4x4 MU-MIMO Dual Band Wirel...

Cindy-wallys · 发表于 2022-12-2 14:01:12

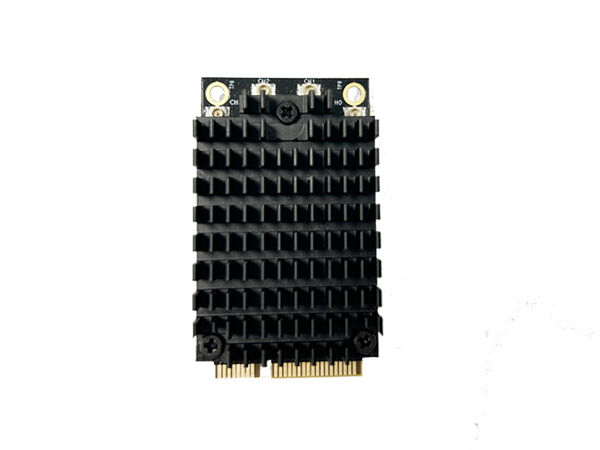

DR9074E

https://www.wallystech.com/Network_Card/DR9074E-Qualcomm-QCN9074-QCN9024-WiFi6-and-WiFi6E-4x4-MU-MIMO-Dual-Band-WiFi-Module-MiniPCIe.html

Features

■ Qualcomm Atheros QCN90X4

■ Maxim Tx power 20dBm per chain

■ Date Rateup to 4949Mbps

■ Support 5.180~5.825Ghz or 5.925GHz-7.125GHz or 5.180GHz- 7.125GHz

■ MiniPCIe connector

■ PCI Express 3.0 Interface

Applications

■ Security Surveillance

■ Commercial radio coverage

■ Hotel Wireless application

■ Forest fire protection engineering

■ Country coverage

■ Some special scene application

Absolute Maximum Rating

Parameter	Rating	Unit
Operating Temperature Range	-20 to 70	oC
Storage Temperature Range	-40 to 90	oC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%

Hardware Specifications

Symbol	Parameter
Chipset	Qualcomm Atheros QCN9074(QCN9024)
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I2C bus EEPROM
Standard Operating Voltage	3.3V
Operating Systems	QSDK
Host Interface	MiniPCIE
Antenna Cable / Port	4 x MMCX Connectors,4T4R
Frequency Range	5.180GHz-5.852GHz or 5.952GHz-7.125GHz
Data Rates for WALN	Maxim TX power 20dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN	Support 20/40/80/160MHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range	Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification	TBD
Power Consumption	15W（Maximum），9.5W(Normally)
Dimensions (WxHxD)	30mm x 50mm x 14.5mm
